SKU:
56065

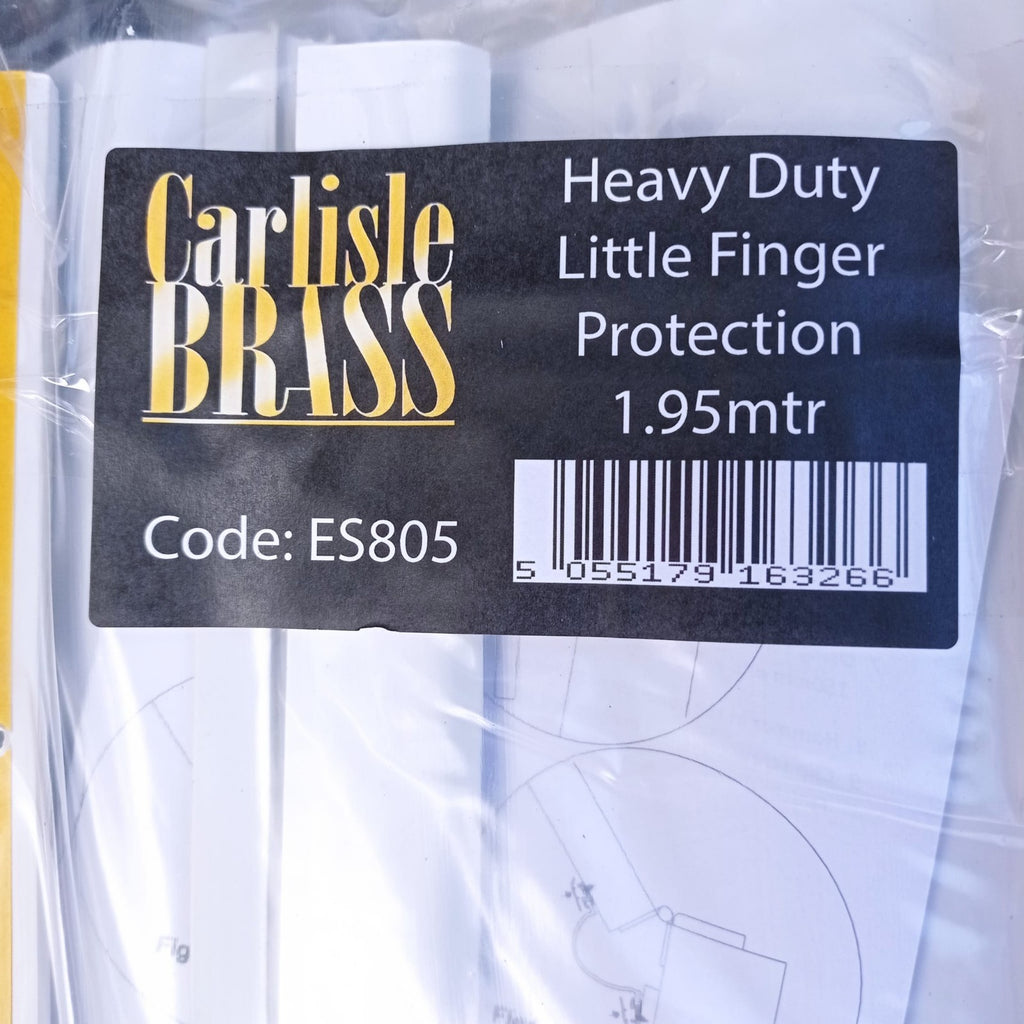

Full length 1.95m
Front & Hinge Side Full Door 1950mm
This is a high quality product from Carlisle Brass, it is not the same as the some of the other cheap similar products found
this is suitable for use in schools and hospitals data sheet is available on the net

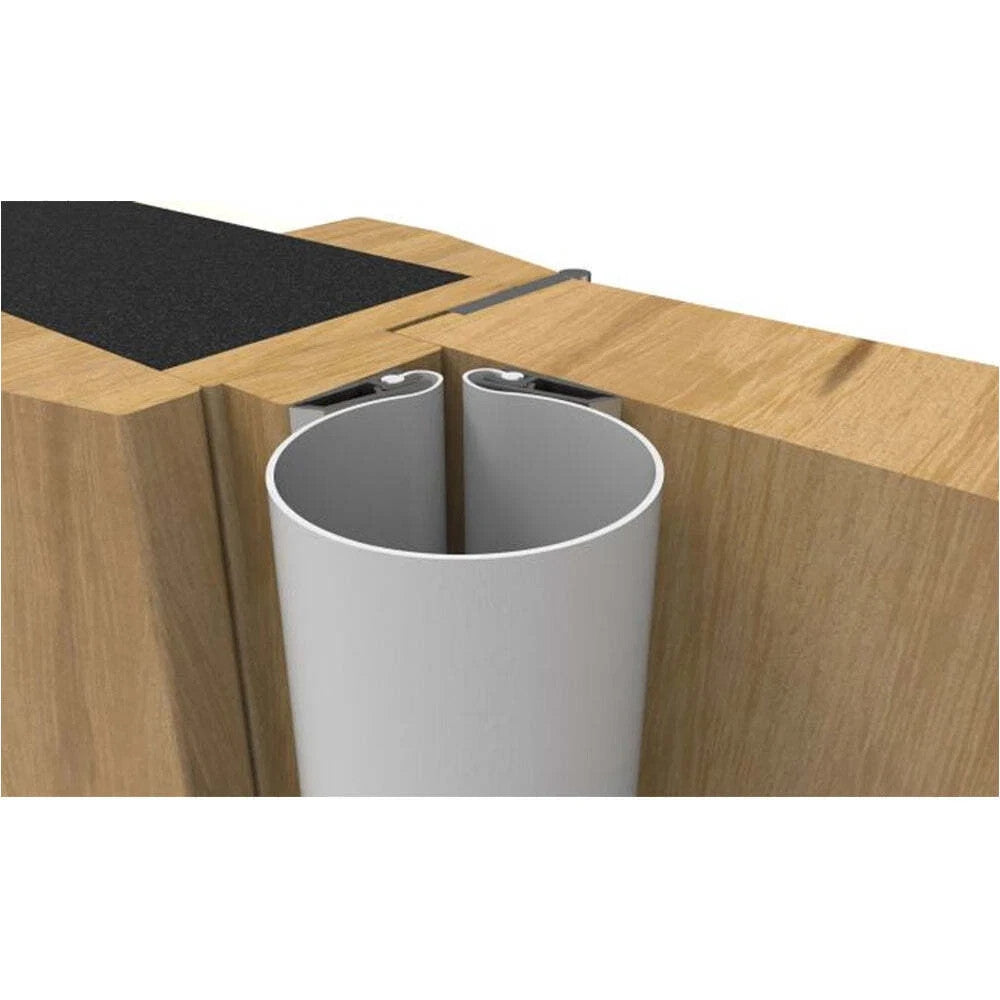

- Heavy duty finger protector hinge guard
- Hinge guards provide finger protection for doors which are simple and cost effective devices that cover the gaps created when doors are opened.
- These finger protectors fit most doors and are simple to install.
- Finger protectors are unobtrusive, and will in no way impede the opening and closing of any door.
- Slim-line design - once fitted it is hardly noticeable.
- finger protectors are suitable for areas of medium pedestrian traffic.
- Suitable for butt hinged or pivot doors.
- Flexible - will not split or tear.
- Up to 180 degree opening.
- Improves acoustic and draft proofing performance.
- Can be screw fixed to allow easy hinge maintenance, easy to install, no specialist tools or equipment required.
- Supplied with high performance self adhesive tape.
- Our finger protectors are easy to clean and requires no maintenance.
-
Areas of application:
- Suitable for fire rated and non fire rated doors.
- Suitable for timber, steel or composite doors.
- Suitable for doors with a maximum opening angle of 180 degrees.
- Ideal for nurseries, schools and residential care homes

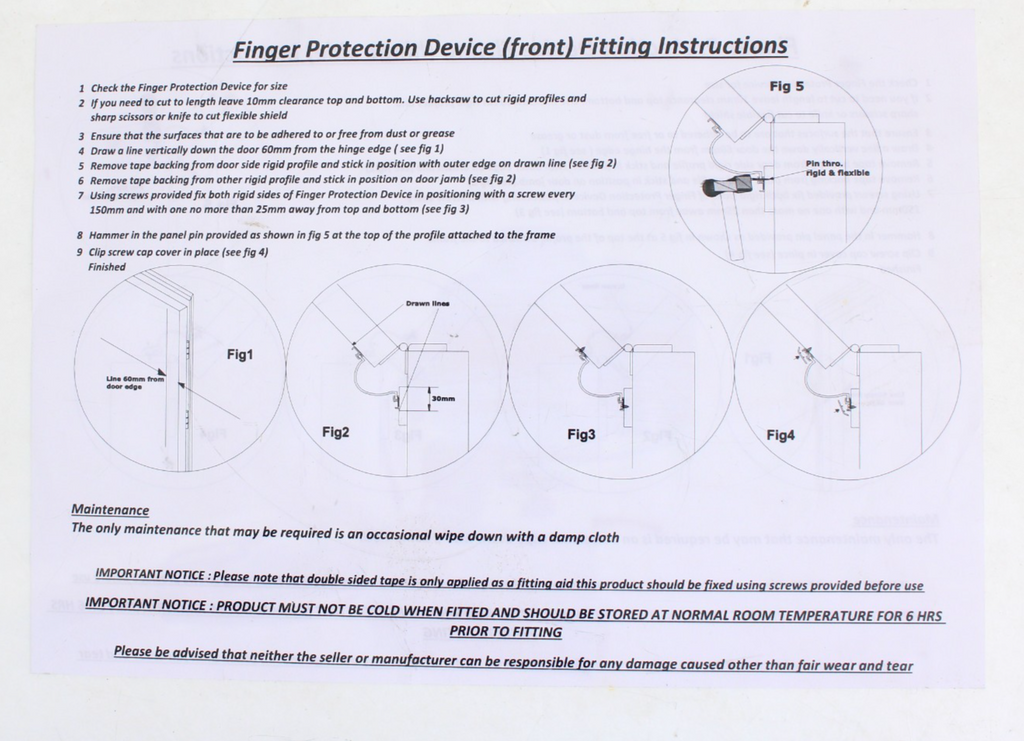

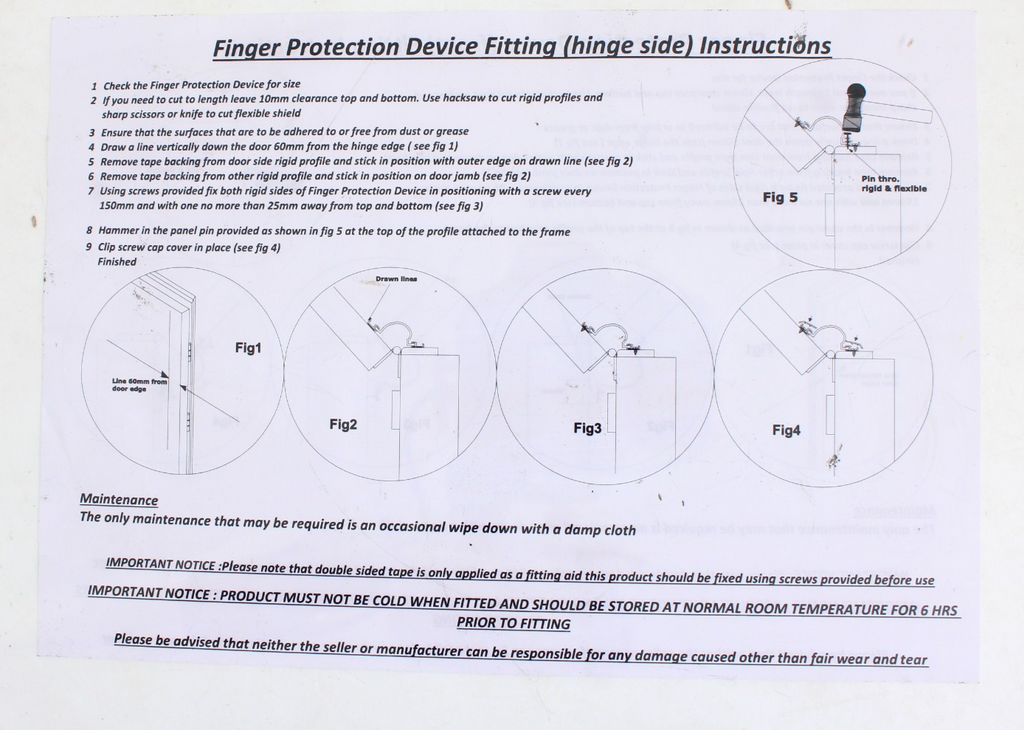

Fitting Instructions:
- 1. Offer up the 1.95m heavy duty finger guard for size.
- 2. If you need to cut to length leave 10mm clearance top and bottom. Use a hacksaw to cut rigid profiles and sharp scissors or knife to cut flexible shield.
- 3. Ensure that the surfaces that are to be adhered to are free from dust or grease.
- 4. Draw a line vertically down the door 60mm from the hinge edge
- 5. Crimp bottom end of rigid socket with pliers prior to fitting - can be done post fit with hammer and centre punch
- 6. Remove tape backing from door side rigid profile and stick in position with outer edge on drawn line .
- 7. Remove tape backing from other rigid profile and stick in position on door jamb
- 8. Using screws provided fix both sides of Little Fingers Heavy Duty in positioning with a screw every 150mm and with one no more than 25mm away from top and bottom
Condition New
Unit Quantity 1
Quantity available ebay only shows a
max of 10
Item Location ILMINSTER UK
Image Actual & Stock Item
