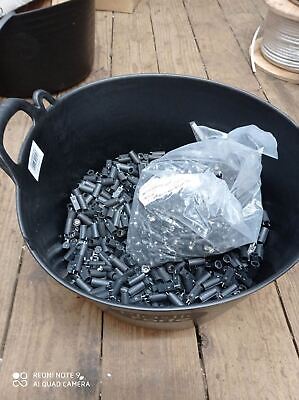

Eaton 20A PCB Mount Fuse Holder for 5 x 20mm Fuse 1P, 250V ac (Job Lot Of 1000)

Product Details

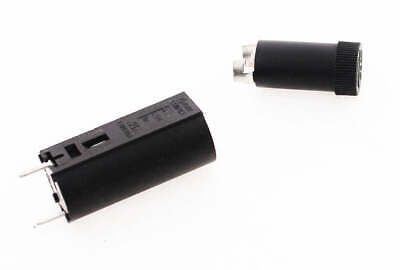

Eaton Bussmann Bayonet Cap, PCB Mount Fuse Holders - HTC Series

The Eaton Bussmann HTC Series of PCB mount fuse holder offers current ratings and voltage ratings of 6.3 Amp and 250 Volts respectively. These vertical or horizontal surface mount fuse holders provide the installation hardware for a fuse and prevents accidental misuse in a circuit. It includes 5mm x 20mm cartridge type fuse carrier and knobs are spring loaded bayonet type with screwdriver slot. The body of this holder is made of high temperature thermoplastic material and tin plated brass is used for contact.

Features and Benefits

• Horizontal or vertical mount formats
• Compatible with 5 mm x 20 mm fuses
• High rated power acceptance
• Integrated protection against electrical shock
• Quick connect terminal type
• Body material is high temperature thermoplastic
• Fuse carriers are easily replaceable
• Shock safety
• Voltage rating is 250V

Applications

• Automotive
• Electronics equipment
• Industrial equipment
• Sockets and Switches

Approvals

UL recognised component; CSA certified; SEMKO

Eaton Bussmann PCB Mount Fuse Holder, 250V AC Voltage Rating, 10A Current Rating - Eaton Bussmann Series - HTC-45M

Use this fuse holder from Eaton's Bussmann series to safely mount a fuse onto a PCB. The holder ensures the fuse remains securely in place and also offers insulation from external contact, for greater safety. This accessory helps to carry incoming electrical power to a fuse as efficiently as possible and ensures a clear current path, so there's minimal risk of dangerous voltages creeping to other components in your electrical system. A holder like this is suitable to use in industrial control cabinets. Together with a fuse, it helps to protect everything from lighting and heating systems to automotive equipment and electrical sockets.

• Wide operating temperature range of -30°C to +85°C, so suitable for demanding environments
• High rated power acceptance of 10A, so compatible with large capacity systems
• Tin-plated copper conductors for optimal electrical flow, so improves a circuit's efficiency
• Body made from hard-wearing thermoplastic for longevity in harsh settings

Why doesn't this fuse holder have a short-circuit current rating?

This is because the fuse holder doesn't interrupt current flow. That's the job of the fuse itself, which will always have a short-circuit current rating.

Note

Eaton formerly known as Bussmann

PCB Mounting

Voltage Rating 250V.

Specifications
