SKU:
615885
Condition New
Unit Quantity 1
Quantity available ebay only shows a max of 10
Item Location Ilminster UK
Photo Actual Item
Technical Data
| maximum torque | 6 Nm | |
| Direction of tightening | For right and left-hand tightening | |
| Torque measuring accuracy | ±4 % | |
| Test certificate | Manufacturer’s test certificate | |
| Overall length L | 225 mm | |
| Torque range | 1 Nm - 6 Nm | |
| Scale graduation, 1 graduation = | 0.1 Nm | |
| Weight | 300 g | |
| Square drive | 1/4 in | |
| Display | analogue | |
| Release signalling | akustisk; haptisk | |
| Trigger principle | mechanical short-travel release | |
| Connection format | Push-through square drive (ratchet) | |
| Measurement technology | mechanical | |
| Data can be recorded | no | |
| Setting the trigger value | with adjustment scale | |
| Feedback | triggering | |
| Reversible reading | Nm | |
| Measurement process | Torque | |
| Adjustable trigger value | adjustable | |
| Standard | DIN EN ISO 6789 | |
| Lever length including factory calibration reference dimension [l3] | 155 mm | |
| Type of product | Torque Wrench |
Identification & Classification
| Article number | 656050 6 | |
| EAN / GTIN | 4045197570512 | |
| Manufacturer number | 656050 6 | |
| Manufacturer | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Description
Version:

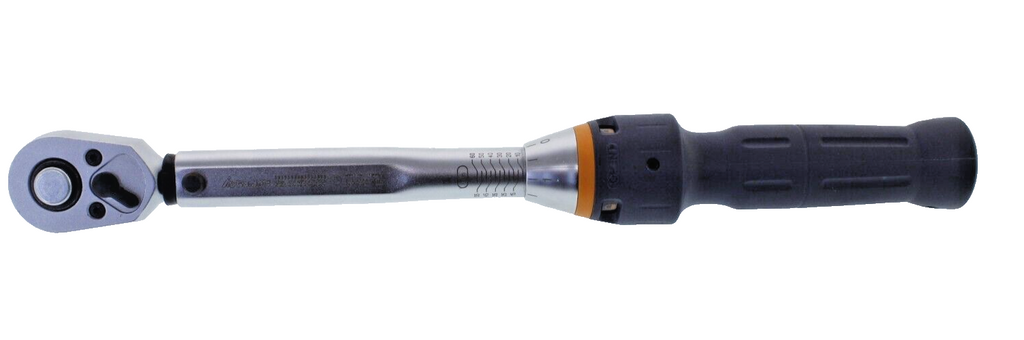

Handy and very compact single-arm torque wrench, adjustable by scale and self-triggering. Extremely high repeat accuracy, since high quality materials are used throughout. Wearing parts, such as compression springs, are specially pre-treated and sorted. Reversible ratchet for left-hand and right-hand tightening.
Acoustic and perceptible “click effect” ensures particularly easy use and accurate setting of the desired torque.
With built-in reversible ratchet (with ejector up to size 320) − for left-hand and right-hand tightening.
Units of measure: Nm
Acoustic and perceptible “click effect” ensures particularly easy use and accurate setting of the desired torque.
With built-in reversible ratchet (with ejector up to size 320) − for left-hand and right-hand tightening.
Units of measure: Nm
Function:
The wrench triggers giving a “signal” (clearly audible acoustic tone and noticeable vibration) and afterwards is immediately ready for use again.
Application:
For medium to larger batch productions.
Standard:
Tested to DIN EN ISO 6789.
Accuracy:
Of the displayed value only for right-hand tightening: ±4 %
