SKU:
36067CM

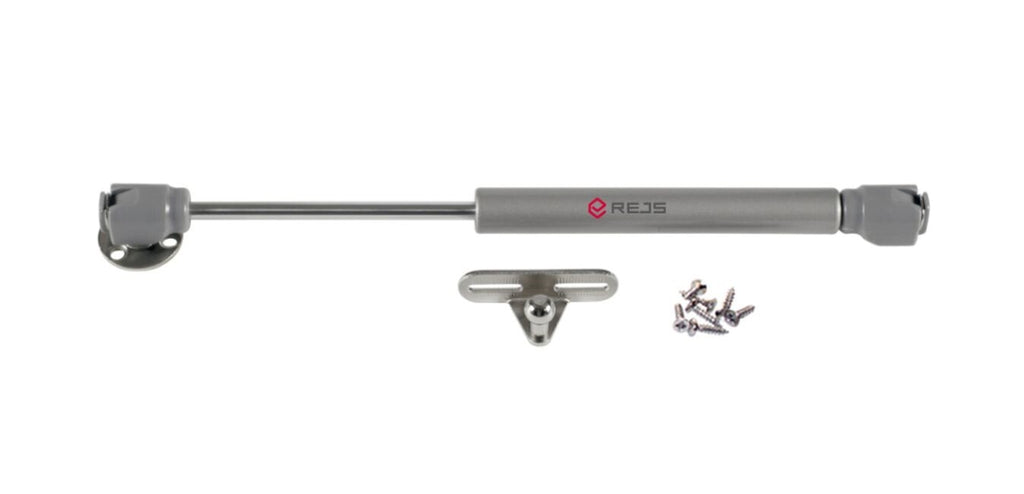

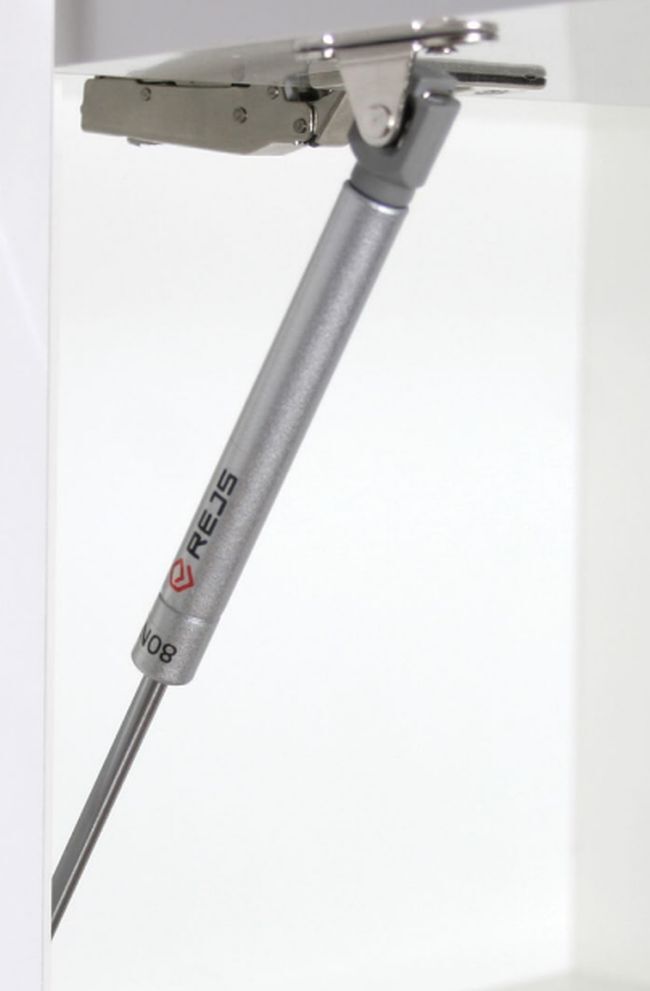

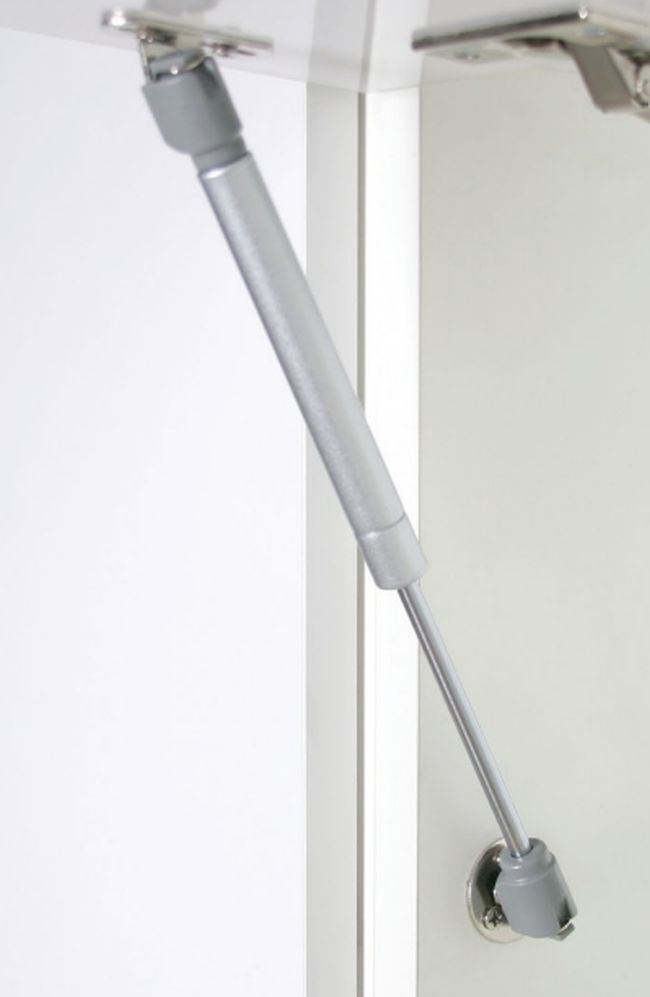

GAS STRUT LID STAY CABINET DOOR HINGE SOFT OPEN/CLOSE + FIXINGS 50NM TO 150NM
Upgrade your cabinet doors with these versatile gas strut lid stays. Suitable for PVC, wood, or aluminium doors, these soft open/close hinges ensure smooth and silent operation. With a silver finish, they add a sleek touch to any cabinet. The compressed length of 180mm and extended length of 260mm and 110mm and 156mm for L-156 allow for a 75°, 90°, or 110° opening angle, accommodating various door sizes. The included fittings with screws and instructions make installation a breeze.
- Fits PVC, wood or aluminium doors
- Includes fittings with screws and instructions
- Compressed Length - 180mm and 110mm for L-156
- Extended Length - 260mm and 156mm
- Opening angle - 75°, 90°, 110°
- Silent operation
Recommended door weight / NM force.
- 50Nm = 0.9 - 1.5kg door
- 60Nm = 1.0 - 1.6kg door
- 80Nm = 1.5 - 1.9kg door
- 100Nm = 1.9 - 3kg door
- 120Nm = 2 - 4.1kg door
Recommended door weight / NM force for L-156
- 50Nm = 0.9 - 1.5 kg door
- 60Nm = 1.0 - 1.6 kg door
- 80Nm = 1.5 - 1.9 kg door
