SKU:
126282
Low input offset voltage drift is 0.2µV/°C (typical)
Quiescent current per amplifier is 500µA typ at (VS = 5V at TA = 25°C; RF = 0 ohm for G = +1)
Fully specified at VS = 3V, 5V, ±5V, low input bias current is 470nA typ
Input common-mode range is −VS − 0.1V to +VS − 1V
−3dB bandwidth is 105MHz typ at (G = +1, VOUT = 0.02V p-p)
Input voltage noise is 5.9nV/√Hz at 100kHz, input current noise is 0.6pA/√Hz at 100kHz
Low distortion is −102dBc/−126dBc HD2/HD3 at 100kHz
Operating temperature is −40°C to +125°C, settling time to 0.1% is 35ns at (G = +1, VOUT = 2V step)
Condition New
Unit Quantity 1
Quantity available ebay only shows a
max of 10
Item Location ILMINSTER UK

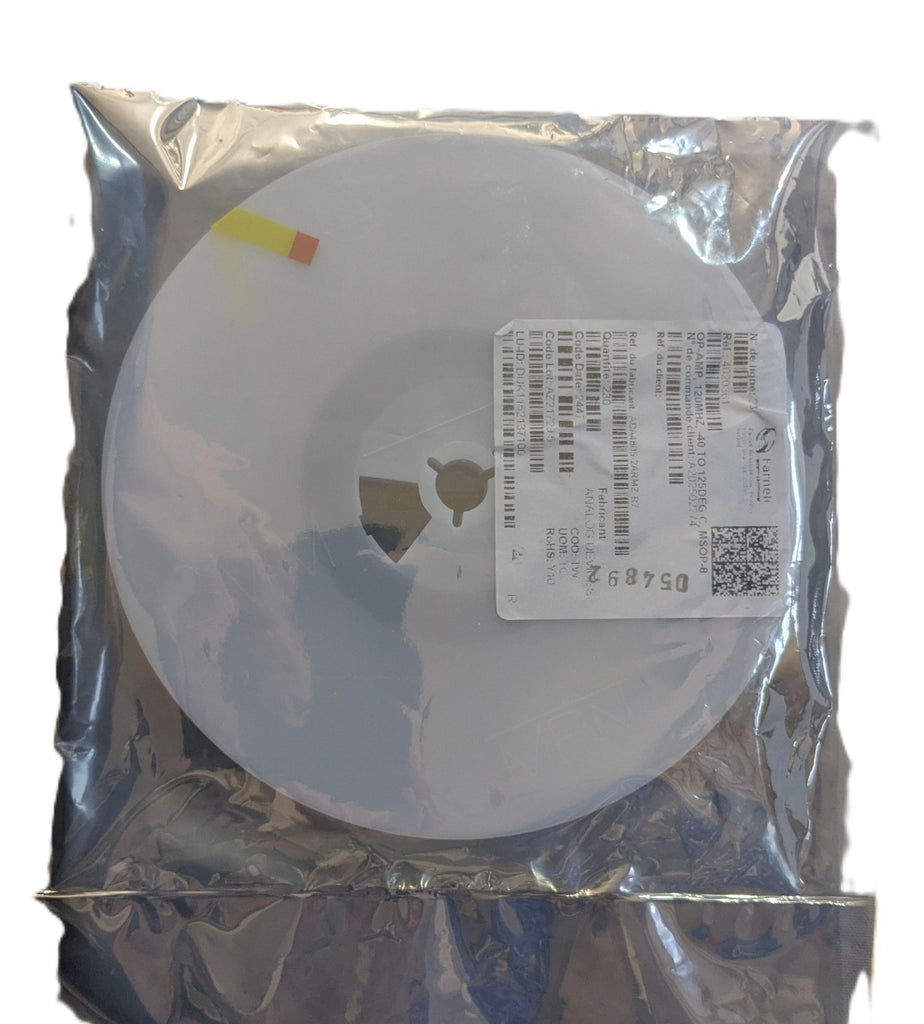

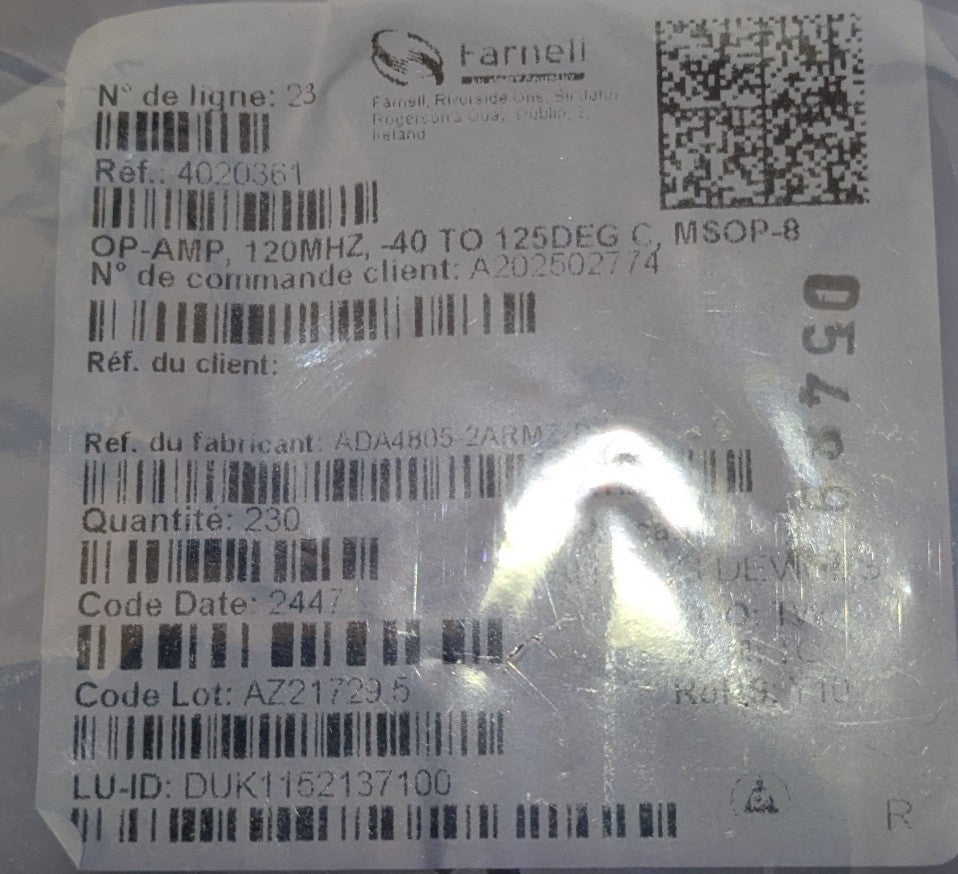

Image Actual Item
Low input offset voltage drift is 0.2µV/°C (typical)
Quiescent current per amplifier is 500µA typ at (VS = 5V at TA = 25°C; RF = 0 ohm for G = +1)
Fully specified at VS = 3V, 5V, ±5V, low input bias current is 470nA typ
Input common-mode range is −VS − 0.1V to +VS − 1V
−3dB bandwidth is 105MHz typ at (G = +1, VOUT = 0.02V p-p)
Input voltage noise is 5.9nV/√Hz at 100kHz, input current noise is 0.6pA/√Hz at 100kHz
Low distortion is −102dBc/−126dBc HD2/HD3 at 100kHz
Operating temperature is −40°C to +125°C, settling time to 0.1% is 35ns at (G = +1, VOUT = 2V step)
