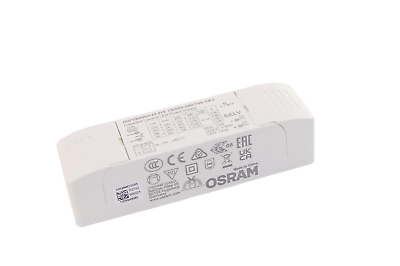

OSRAM OPTOTRONIC IT FIT 15/220-240/700 CS I LED DRIVER LIGHTING LIGHTS

Technical Data

Electrical data

Nominal input voltage

220…240 V

Mains frequency

50/60 Hz

Input voltage AC

198…264 V

Total harmonic distortion

< 10 %

Power factor λ

0.90C…0.95

Efficiency in full-load

86 %

Protective conductor current

<0.7 mA

Inrush current

< 10 A

Max. ECG no. on circuit breaker 10 A (B)

51

Max. ECG no. on circuit breaker 10 A (C)

51

Max. ECG no. on circuit breaker 16 A (C)

82

Max. ECG no. on circuit breaker 16 A (B)

82

Surge capability (L/N-Ground)

2 kV

Surge capability (L-N)

1 kV

Nominal output voltage

11…21 V

U-OUT (working voltage)

60 V

Nominal output current

550 / 600 / 650 / 700 mA

Output current tolerance

±7.5 %

Default output current

700 mA

Output ripple current (100 Hz)

< 5 %

Output PSTLM

≤1

Output SVM

≤0.4

Nominal output power

6.05…14.7 W

Maximum output power

14.7 W

Galvanic isolation

SELV

Galvanic isolation primary/secondary

SELV

Current set

DipSwitch

Dimensions & weight

Mounting hole spacing, length

89.4 mm

Mounting hole spacing, width

22.0 mm

Product weight

56.00 g

Cable cross-section, input side

0.5…1.5 / 0.75…1.5 mm²

Cable cross-section, output side

0.5…1.5 / 0.75…1.5 mm²

Wire preparation length, input side

7…8 mm

Wire preparation length, output side

7…8 mm

Length

104.0 mm

Width

30.0 mm

Height

26.0 mm

Colors & materials

Casing material

Plastic

Temperatures & operating conditions

Ambient temperature range

-20…+50 °C

Maximum temperature at tc test point

80 °C

Max.housing temperature in case of fault

110 °C

Temperature range at storage

-40…+85 °C

Permitted rel. humidity during operation

5…85 %

Lifespan

ECG lifetime

50000 h

Additional product data

Encapsulated

No

Capabilities

Dimmable

No

Overheating protection

Automatic reversible

Overload protection

Automatic reversible

Short-circuit protection

Automatic reversible

No-load proof

Yes

Intended for no-load operation

No

Max. cable length to lamp/LED module

2.0 m

Suitable for fixtures with prot. class

I / II

Type of connection, input side

Push terminal

Type of connection, output side

Push terminal

Number of channels

1

Suitable for through-wiring

No

Control interface

-

Programming

Programming device

DIPswitch

Certificates & standards

Approval marks – approval

ENEC 05 / CCC / CE / RCM

Standards

Acc. to IEC 61347-1/Acc. to IEC 61347-2-13/Acc. to IEC 62384/Acc. to IEC 61000-3-2/Acc. to IEC 61000-3-3/Acc. to IEC 61547

Type of protection

IP20

Protection class

II

Logistical data

Commodity code

850440839000

Environmental information

Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Date of Declaration

29-05-2023

Primary Article Identifier

4062172199322

Candidate List Substance 1

Lead

CAS No. of substance 1

7439-92-1

Safe Use Instruction

The identification of the Candidate List substance is sufficient to allow safe use of the article.

Declaration No. in SCIP database

a3d39858-0cb2-4619-aba4-afc5e626d767
