SKU:
85011-1
Condition New
Unit Quantity 1
Quantity available ebay only shows a max of 10
Item Location Ilminster UK
Photo Actual Item

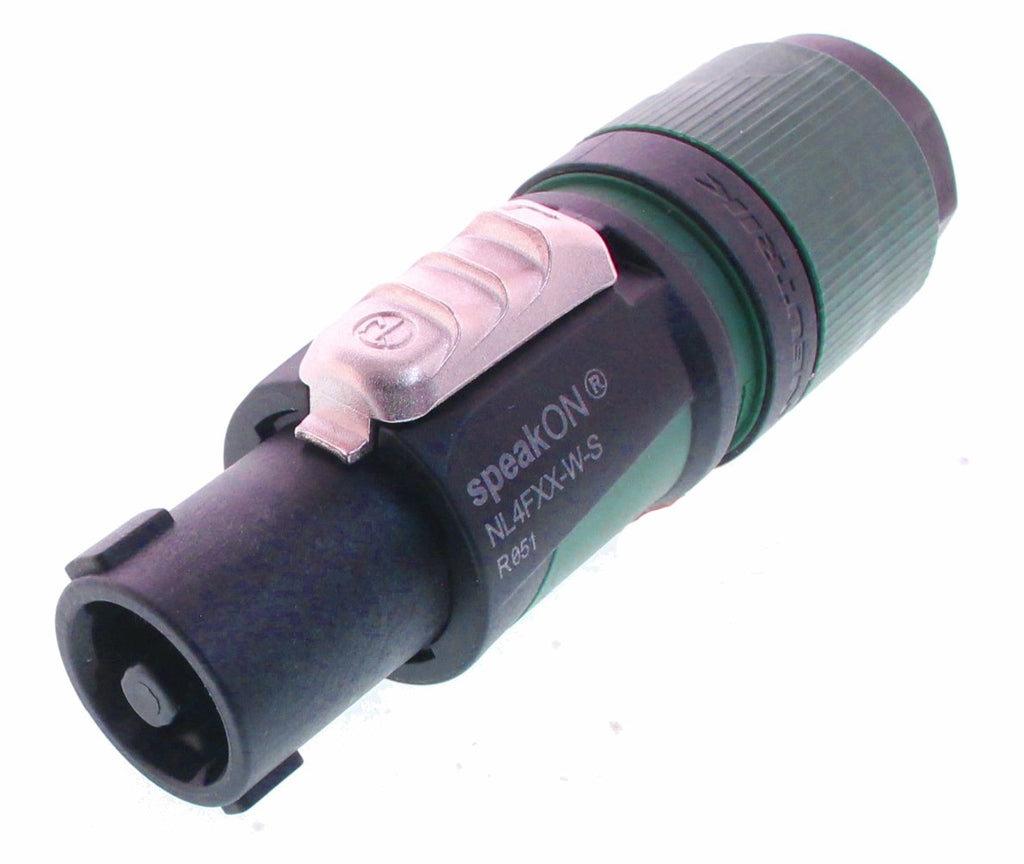

4 pole speakon cable connector screw terminal assembly chuck type strain relief for cable diameters 6 to 12 mm. Speakon connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakon cable connectors feature solid contacts with screw-type terminals including a stranded wire protection
Mates with 2-pole chassis connector as well as 4-pole chassis connector (contacts +1/-1)
Up to 37 A rms current rating
Easy and reliable twist lock system
Improved kink protection by two-component bushing
Ergonomic design with slip-proof two-component molded housing
Cable : diameter 6-12mm
Lifetime Typically 5 000 mating cycles
Terminals Screw type
Temperature range -33 C to +80 C
IP rating IP20
Mates with 2-pole chassis connector as well as 4-pole chassis connector (contacts +1/-1)
Up to 37 A rms current rating
Easy and reliable twist lock system
Improved kink protection by two-component bushing
Ergonomic design with slip-proof two-component molded housing
Cable : diameter 6-12mm
Lifetime Typically 5 000 mating cycles
Terminals Screw type
Temperature range -33 C to +80 C
IP rating IP20
