SKU:
36175CM

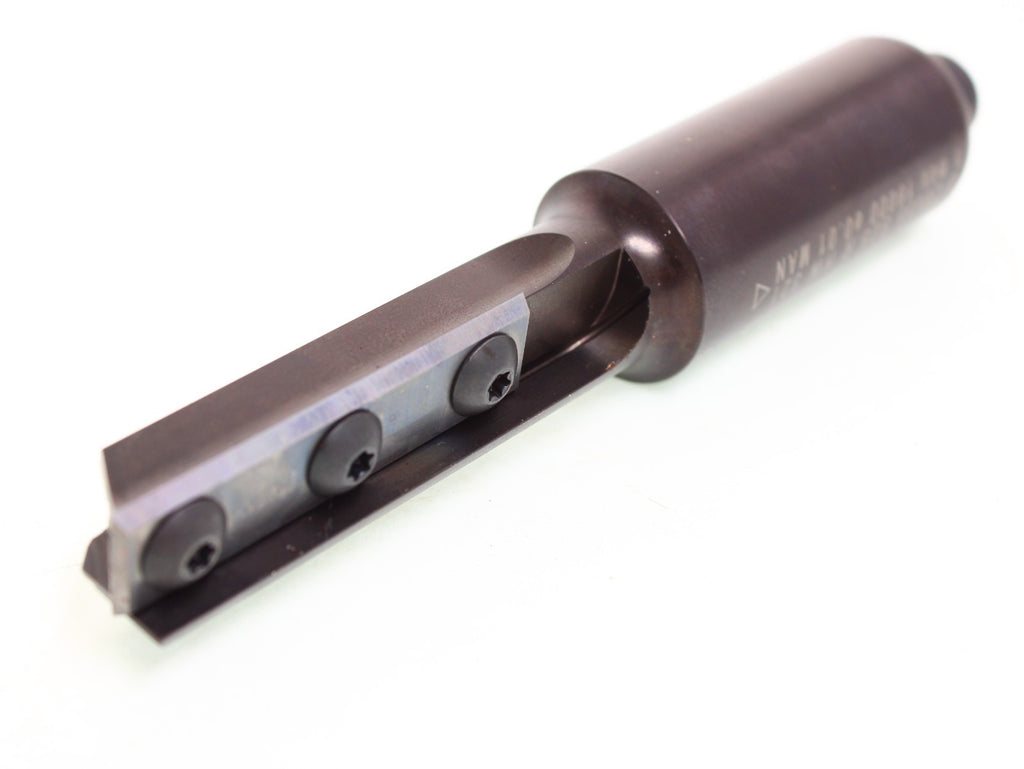

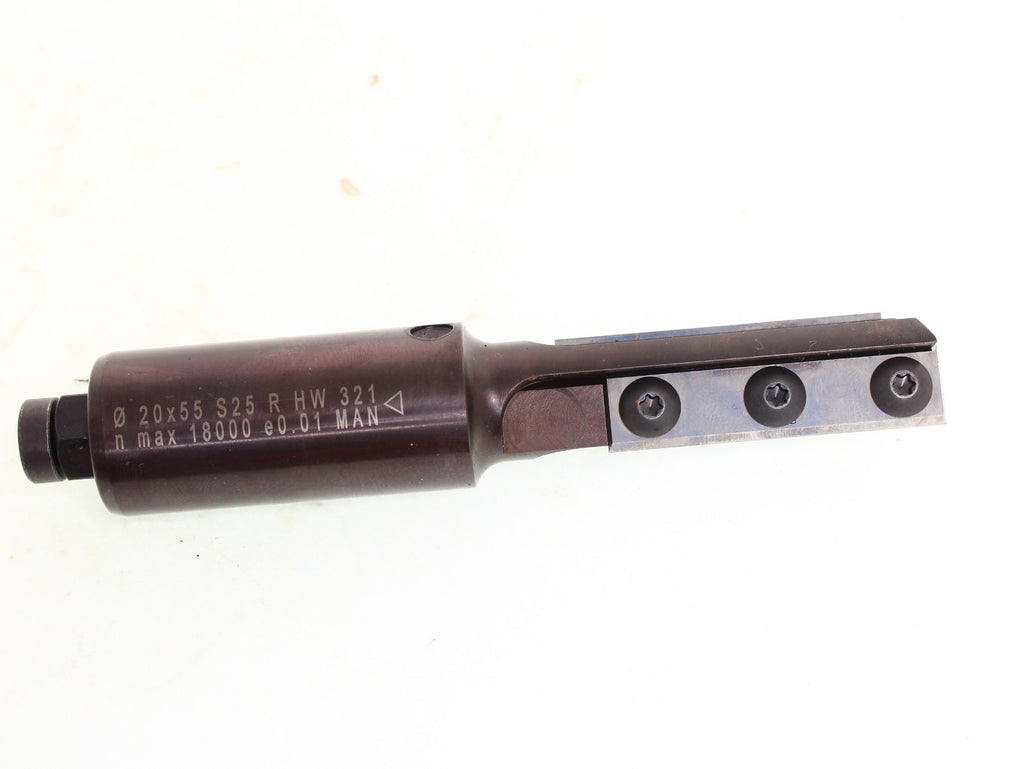

Stehle 2237 End mill with indexable inserts - 20x55.0 S=25.0X55.0 GL=125 mm Z=2 HW right-hand rotation
| CNC milling machines | ||||
| • | Application | |||
| // | for joining, rabbeting and grooving in solid wood and wood-based materials | |||
| // | for milling cutouts and contours | |||
| // | for immersion with simultaneous feed in the z-axis and x- or y-axis | |||
| • | execution | |||
| // | Cutting edges parallel to the axis, circumferentially cutting in staggered arrangement (Ident-No. 180799 no staggered arrangement) | |||
| // | 1 cutting edge for drilling | |||
| // | Cutting material: HW TC05 | |||
| // | with stop screw | |||
| • | Notes | |||
| // | Clamping devices: ps-System, TRIBOS, collet chucks | |||
| // | with stop screw | |||
| • | Product features | |||
| Diameter [D] or [DA] Ø | 20.0 mm | |||
| Cutting width [L2] or [SB1] | 55.0 mm | |||
| Shaft diameter [Ø d] | 25.0 mm | |||
| Shaft length [L3] | 55.0 mm | |||
| Total length [L1] | 125.0 mm | |||
| Number of teeth [Z] | 2 teeth | |||
| Cutting material [HW] | hard metal | |||
| Cutting material specification [CMSS1] | TC05 for wood-based materials, plastics and hardwood | |||
| Maximum speed [Nmax] [min-1] | 18,000 | |||
| Cutting direction [DR1] [R] | clockwise | |||
| Feed type [MEC] | mechanical feed | |||
| • | Order information | |||
| Product Identification Number | 177157 | 50811910 | ||
| EAN code | 4030556384763 | |||
| Minimum order quantity [MBM] | 1 piece | |||
| Packaging unit [PU] | 1 piece | |||
| Weight [kg] | 0.01 kg | |||
