Product Details

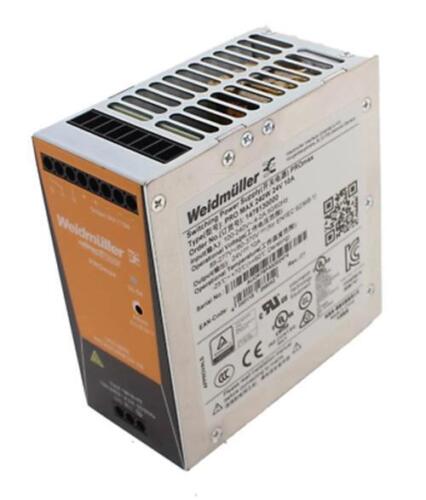

Weidmüller Pro Max DIN Rail Power Supply
The Weidmüller Pro Max series high-performance and durable switch-mode DIN-rail power supply have 10A output current at 24VDC output voltage. Its most outstanding features are of small size, high boost capability and full power in a wide temperature range. This power supply has a universal input voltage ranges between 85VAC and 277VAC /80VDC and 370VDC with adjustable output voltage. Its high immunity makes it suitable for almost every situation.
Features and Benefits
High efficiency up to 91.5%
LED indicator for simple error detection
Operating temperature ranges between -25°C and 70°C
Overload and short-circuit protection
Power rating is 240W
Reliable and robust
Ripple factor and noise is less than 50mV
Screw connection
Applications
Factory automation
Power management
Process control
Certifications
CE certified
cULus
EAC
IP20 rated
TUV (EN/IEC 60950-1)
VDE
Specifications
| Attribute | Value |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 277V ac |
| Output Voltage | 24V dc |
| Output Current | 10A |
| Power Rating | 240W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Height | 130mm |
| Depth | 125mm |
| Width | 60mm |
| Mounting Type | DIN Rail Mount |
| Series | PRO MAX |
| Standards Met | 61000-4-4, 61000-4-5, 61000-4-6, CE Certified, cULus Listed, cULus Recognized, EAC, EN 50178/VDE 0160, EN 55022, EN 60204, EN 60950, EN 61000-3-2, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8, IEC 1709, IEC 60068-2-27, IEC 60068-2-6, IEC 61558-2-16, TUV, VDE 0100-410/DIN57100-410, VDE 0106-101 |
| MTBF | >500000h |
| Special Features | Durable, High Performance |
| Maximum Temperature | +70°C |
| Ripple And Noise | <50mV |
| Minimum Temperature | -25°C |
|
Brand |
WEIDMULLER |
|
Part Number |
1478130000 |
|
Type |
PSU |
|
Tag |
Module |
|
Item Includes |
As Photo |
|
Item Does Not Include |
As Photo |
|
Condition |
New |
|
Package Condition |
Original Packaging |
|
Unit Quantity |
1 |
|
Unit Type |
Unit |
|
Item Length |
|
|
Item Width |
|
|
Item Height |
|
|
Item Weight |
|
|
Item Inner Diameter Bore |
|
|
Item Outer Diameter |
|
|
Delivery Time |
Dispatched Same Day Standard 2nd Class Express UPS |
|
Warranty |
12 Months |
|
Quantity Available |
Direct: Ebay: Only Shows a Max of 10 |
|
Item Location |
Ilminster U.K. |
|
Ebay Only |
|
|
Photo |
Actual Item |
